High-Precision 3205 SFU Series Ball Screws: The Ultimate Guide to Reliable Linear Motion

If you’re looking for a high-performance, cost-effective solution for converting rotary motion into precise linear movement, the 3205 SFU series ball screw is a standout choice. Widely used in industrial machinery, automation systems, and CNC equipment, this component delivers the accuracy, durability, and smooth operation your applications demand. In this guide, we’ll break down its key features, specifications, and why it’s a go-to option for engineers and manufacturers worldwide.

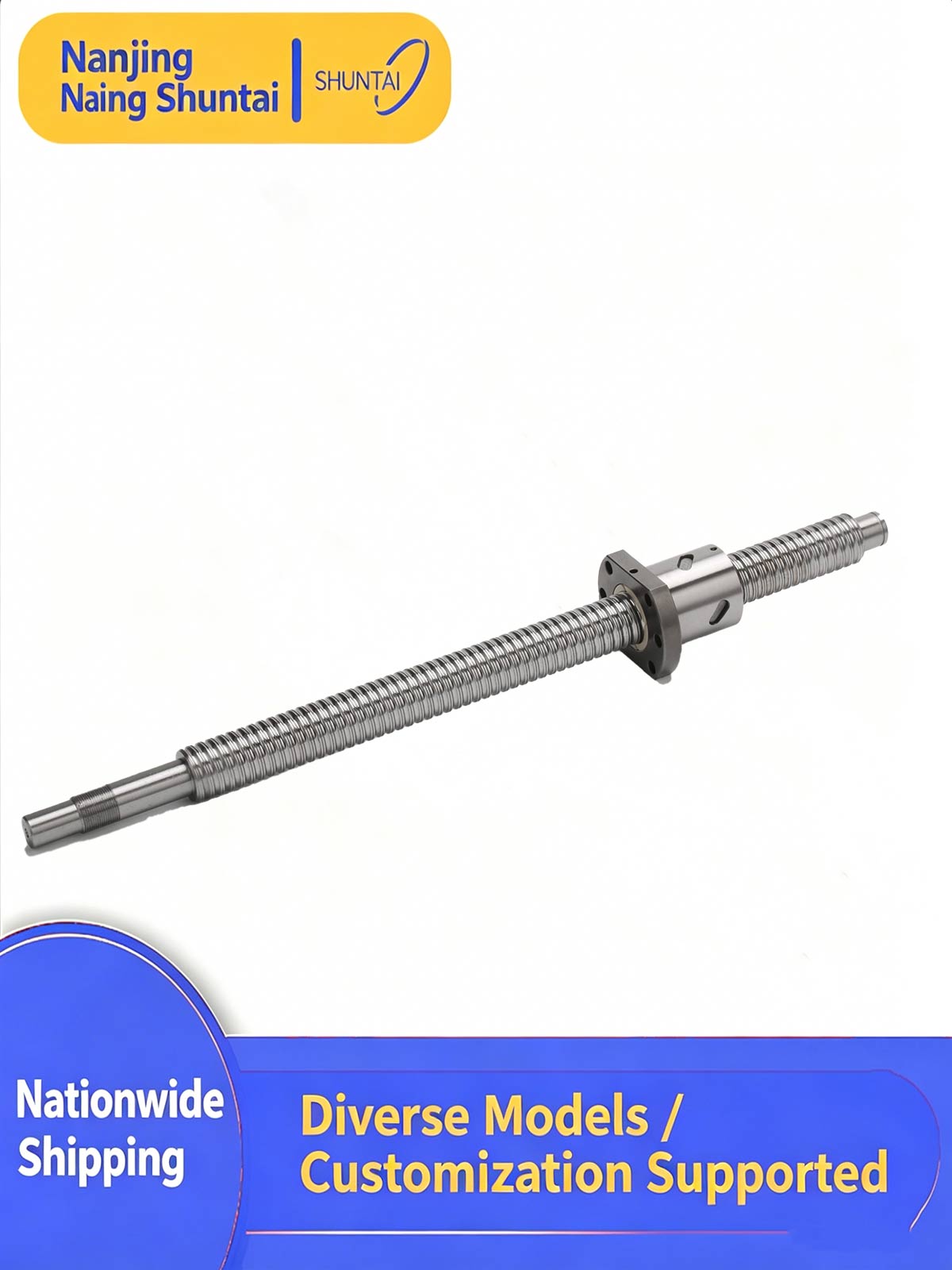

What Is a 3205 SFU Series Ball Screw?

At its core, a ball screw is a mechanical system that translates rotational motion into linear motion using recirculating ball bearings. The 3205 SFU model refers to a specific configuration:

• • Shaft Diameter: 32mm
• • Lead: 5mm (the distance the nut travels with one full rotation of the screw)

• • SFU Series: A standard metric design known for its compatibility, ease of integration, and reliable performance in general industrial applications.
•
• This design is engineered to minimize friction, maximize efficiency, and ensure consistent positioning accuracy over millions of cycles.

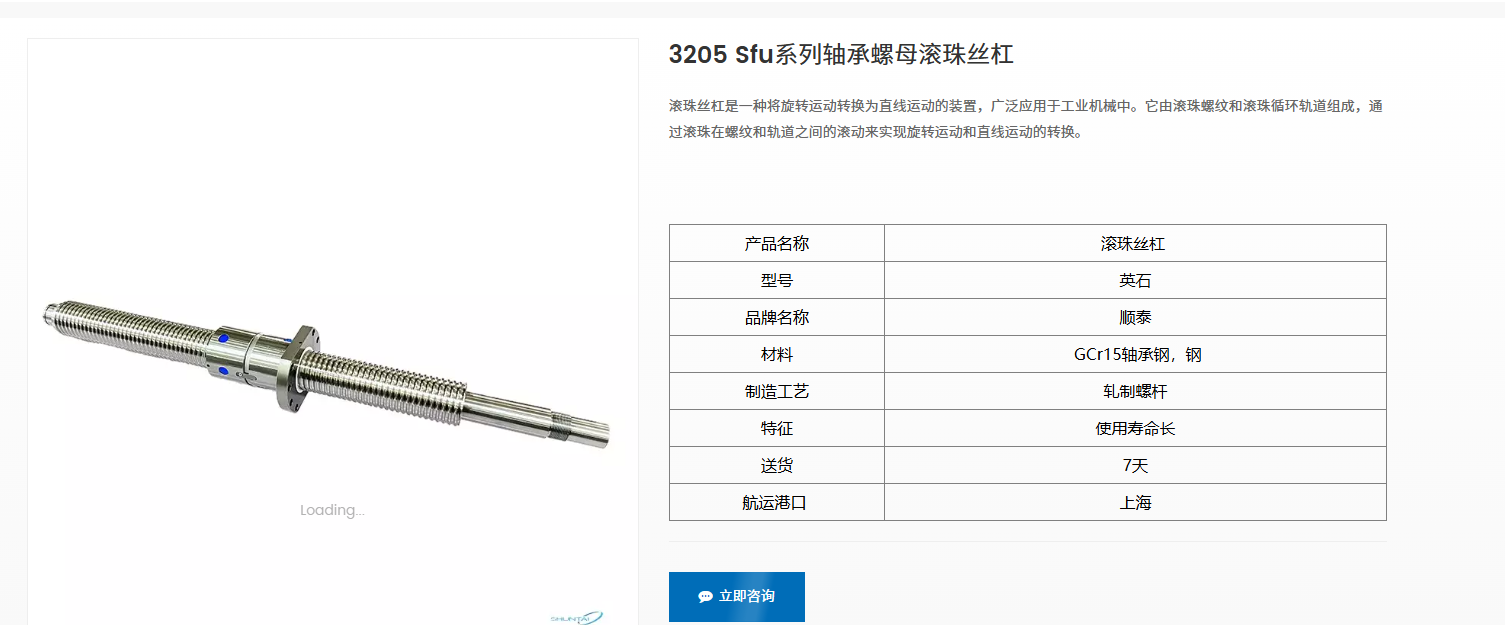

• Key Specifications of the 3205 SFU Ball Screw
• The 3205 SFU ball screw from Shuntai is built to meet the most common industrial requirements, with flexible customization to match your project needs:

• Feature	Details
  Core Material	GCr15 bearing steel, renowned for high hardness, wear resistance, and long service life.
  Manufacturing Process	Rolled screw shaft (cold rolling technology), balancing precision and cost-effectiveness.
  Precision Grades	Available in C3, C5, and C7 grades to suit different accuracy needs (from general automation to high-precision CNC).
  Size Range	Standard diameter: 5mm to 65mm; Lead options: 3mm to 300mm; Length: 10mm to 6000mm (custom lengths available).
  Nut Type	Bearing-style ball nut with preload options for enhanced rigidity and zero backlash.
  Lead Time & Shipping	7-day standard production lead time, shipped from Shanghai port for global delivery.

• 5 Standout Benefits of Choosing the 3205 SFU Series


  The 3205 SFU ball screw is designed to solve common challenges in linear motion systems, offering tangible advantages for your equipment:

  1. • Long Service Life



     Constructed from high-quality GCr15 steel and processed with precision rolling, this ball screw resists wear, fatigue, and corrosion, ensuring consistent performance even in continuous-duty applications.

  2. • High Efficiency & Low Friction



     Unlike lead screws that rely on sliding contact, the ball bearings in the SFU series roll smoothly between the screw and nut. This reduces friction loss, lowers power consumption, and generates less heat during operation.

  3. • High Precision & Repeatability



     Available in precision grades up to C3, the 3205 SFU delivers tight positional tolerances, making it ideal for applications requiring accurate, repeatable movement—such as CNC routers, packaging machinery, and automated assembly lines.

  4. • High Rigidity & Smooth Operation



     The preloaded ball nut design eliminates backlash and enhances structural rigidity, resulting in stable, vibration-free linear motion even under heavy loads.

  5. • Customization Compatibility



     From end machining (custom support ends for FK/FF or EK/EF mounts) to nut configurations and surface treatments, the 3205 SFU can be tailored to your exact design requirements.
  6.
  7. Common Applications of the 3205 SFU Ball Screw
  8. Thanks to its balanced performance and versatility, the 3205 SFU series is used across a wide range of industries:

  9. • CNC Machine Tools: Milling machines, lathes, and routers requiring precise axis movement.
  10. • Automation Equipment: Pick-and-place systems, linear actuators, and material handling machinery.
  11. • Medical Devices: Laboratory automation and diagnostic equipment demanding high reliability.
  12. • Packaging Machinery: Forming, filling, and sealing equipment with consistent linear motion needs.
  13. • 3D Printers & Robotics: High-precision positioning for additive manufacturing and robotic arms.
  14. • Why Choose Shuntai for Your 3205 SFU Ball Screw?
  15. At Shuntai, we specialize in manufacturing high-quality linear motion components, with the 3205 SFU ball screw being one of our core offerings. When you partner with us, you get:
  16. • Rigorous Quality Control: Every screw undergoes dimensional and performance testing to ensure it meets international standards.
  17. • Fast Turnaround: Standard orders ship within 7 days, with custom configurations handled efficiently to meet your project timelines.
  18. • Global Shipping: We ship from Shanghai, offering reliable logistics to destinations worldwide.
  19. • Expert Support: Our engineering team can help you select the right specifications or customize the screw to fit your application perfectly.




      The 3205 SFU series ball screw is a versatile, reliable choice for any industrial application requiring precise, efficient linear motion. Whether you need a standard off-the-shelf solution or a custom-engineered part, this model delivers the performance and durability to keep your equipment running smoothly for years.

      If you have questions about specifications, customization, or lead times, feel free to reach out to our team today. We’re here to help you find the right ball screw for your project!
